Alat ukur getaran akibat blasting/ledakan,

     getaran akibat pemasangan pondasi kontruksi

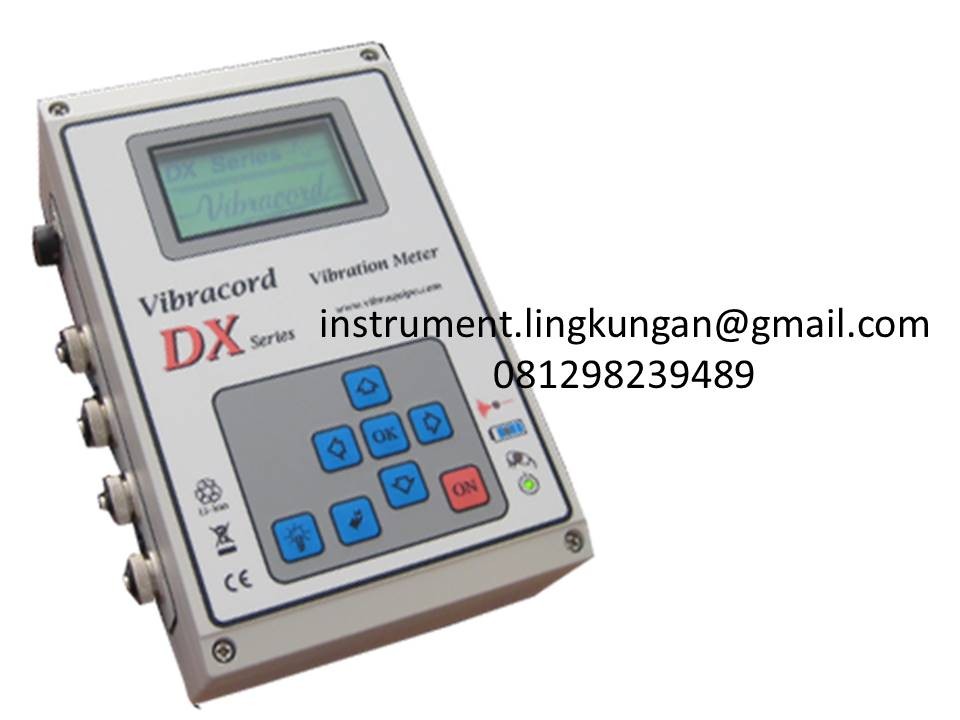

Main Unit

▪ Number of Channel   : 7 channel

▪ Sample rate   : 2048 SPS

▪ Analog to Digital Converter   : 16 bits

▪ Frequency range   : 1 ~ 315 Hz : 2 ~250 Hz

▪ Record time   : 1, 2, 4, 8, 16, 32 s

▪ Trigger mode   : Automatic  : Manual : External

▪ Ports for data transfer (OPTIONAL)  : Ethernet (LAN)

  : USB (External disk) : GSM/GPRS

▪ Record and data transfer   : Internal disk , Printer, SMS

    messages , WEB server , FTP

    server, e-mail

▪ Data storage memory   : 200 MB

▪ External power supply   : 12V

▪ Intenal power supply   : Li-Ion rechargeable battery

▪ Autonomy   : 20hours (continuous use)

▪ Visualization   : Visualization Graphic LCD

    screen 128x64 pixels

▪ Keyboard   : 8 keys

▪ Dimensions   : 180x220x70 mm

▪ Weight  : 1,9 kg (unit only)

▪ Operating temperature   : -10 ºC to 50 ºC

▪ Storage temperature   : -20 ºC to 60 ºC

Complete unit

01. Seismographs for blasting   07. Two three-axis bloks geophones

02. One microphone for air-wave recording   08. External power supply

03. Analysis program   09. Portable external printer

04. Printer module   10. 2 (two) spike

05. User Manual   11. Sertificate of Calibration

06. Carrying case   12. 1-315 Hz Frequency range
